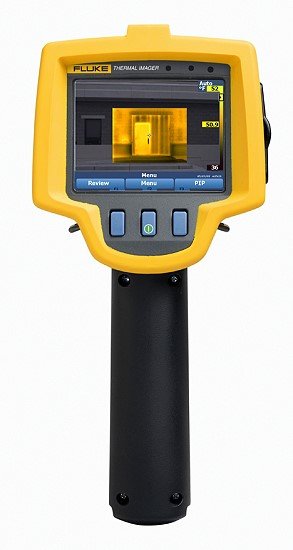

Fluke TiR1 and Fluke TiR Thermal Imagers

Category: Thermal Imagers
The Fluke TiR1 and Fluke TiR is optimized for building envelope, restoration and remediation, inspection and roofing applications.

Fluke TiR1 Thermal Imaging cameras are the perfect imagers for building envelope, restoration and remediation, inspection and roofing applications.

IR-Fusion® Technology
See things both ways—infrared and visual (visible light) images fused together communicating critical information faster and easier—traditional infrared images are no longer enough. IR-Fusion, a patent-pending technology that simultaneously captures a digital photo in addition to the infrared image and fuses it together taking the mystery out of IR image analysis. IR-Fusion is standard on TiR1 models.


The primary diagnostic procedure for determining the thermal performance of a building envelope is infrared thermography.  It can be used to identify heating and cooling loss due to poor construction, missing or inadequate insulation and moisture intrusion.  Correcting the defects plays a significant role in increasing building efficiency and structural integrity.

Thermography can identify surface temperature variations of the building envelope, which relates to problems in the structure, thermal bridging, moisture content and air leakage.

Common Building Diagnostics Applications Are:

Applications
Roof Top Energy Audit
Roofing Surveys Energy Audits
Moisutre Remediation
Moisture Remediation
  • Roofing Surveys
    • Detect wet insulation in flat-roof systems quickly and efficiently
  • Energy Audits
    • Perform infrared energy audits for residential and commercial applications
  • Moisture/Restoration
    • Accurately detect moisture issues located behind exterior and interior walls, in ceilings or under carpet covered floors
  • Mold Remediation
    • Control mold by finding unknown sources of moisture that would otherwise go undetected. Infrared scanning is the fastest most efficient way to provide 100% moisture detection coverage


  TiR4-FT TiR4 TiR3-FT TiR3 TiR2-FT TiR2 TiR1 TiR
High-Resolution, Low Noise VOx Detector

320 x 240

160 x 120
Temperature Range

-20 to +100°C
High Thermal Sensitivity

≤0.05 °C

≤0.07 °C

≤0.1 °C
180° Articulating Flexible Lens ● ● ● ● ● ● ● ●
Interchangeable Lenses ● ● ● ● ● ●
3.6" Color LCD             ● ●
5" Color LCD ● ● ● ● ● ●
Radiometric ● ● ● ● ● ● ● ●
SmartFocus ● ● ● ● ● ● ● ●
Windows CE Based Menu Structure ● ● ● ● ● ● ● ●
Multiple User Profiles ● ● ● ● ● ●
CompactFlash memory Cards ● ● ● ● ● ●
SD memory Cards             ● ●
SmartView Software Included ● ● ● ● ● ● ● ●
AutoCapture ● ●     ● ●
On-board Analysis Functions ● ●     ● ●
User Defined Test Annotations ● ●     ● ●
Built-in Visible Light (Digital) Camera ●   ●   ●
IR-Fusion ●   ●   ●   ● ●
IR/Visible Alarm Function ●   ●   ●   ● ●
Laser Pointer ●   ●   ●
Flash and Torchlight ●   ●   ●
