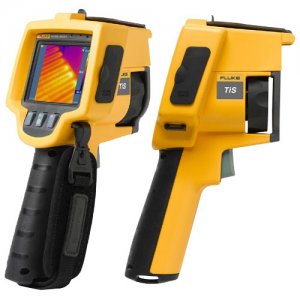

TiS Specifications |
Temperature |
Measurement range (not calibrated below -10°C) |
-20°C to +100°C (-4°F to +212°F) |
Measurement accuracy |
± 5°C or 5 % (at 25°C nominal, whichever is greater) |
Imaging performance |
Image capture frequency |
9 Hz refresh rate |
Detector type |
120 X 120 Focal Plane Array, uncooled micro-bolometer |
Thermal sensitivity (NETD) |
≤ 0.1°C at 30°C target temp. (100 mK) |
Infrared spectral band |
7.5 µm to 14 µm (long wave) |
Standard infrared lens type |
Field of view: 17° x 17° Spatial resolution: (IFOV) 2.50 mRad Minimum focus distance: 15 cm (approx. 6 in) |
Focus mechanism |
Versatile, one-handed manual focus |
Image presentation |
Palettes |
Ironbow, Blue-Red, Grayscale |
Level and span |
Smooth auto-scaling and lock of level and span |
Minimum span (in auto mode) |
5°C (9°F) |
Image capture, review, save mechanism |
One-handed image capture, review, and save capability |
Storage medium |
SD Memory Card (2 GB memory card will store at least 1200 fully radiometric (.is2) IR images annotations, or 3000 basic bitmap (.bmp) images, transferrable to PC via included multi-format USB card reader |
File formats |
Non-radiometric (.bmp) or fully-radiometric (.is2) No analysis software required for non-radiometic bitmap (.bmp) files |
Export file formats w/SmartView software |
BMP, DIB, GIF, JPE, JFIF, JPEG, JPG, PNG, TIF, and TIFF |
Memory review |
Sequential image navigation and review |
TiS General specifications |
Operating temperature |
-10°C to +50°C (14°F to 122°F) |
Storage temperature |
-20°C to +50°C (-4°F to 122°F) without batteries |
Relative humidity |
10 % to 95 % non-condensing |
Display |
9.1 cm (3.7 in) diagonal landscape color VGA (640 x 480) LCD with backlight and clear protective cover |
Controls and adjustments |
User selectable temperature scale (°C/°F) Language selection Time/Date set User selectable backlight: "Full Bright" or "Auto" |
Software |
SmartView full analysis and reporting software included |
Batteries |
Internal rechargeable battery pack (included) |
Battery life |
Three to four hours continuous use (assumes 50% brightness of LCD) |
Battery charge time |
2.5 hours to full charge |
AC battery charging |
AC adapter/charger (110 V ac to 220 V ac, 50/60 Hz) (included), charges battery while imager is operating or turned off, ac mains adapters included |
Power saving |
Sleep mode activated after five minutes of inactivity, automatic power off after 30 minutes of inactivity |
