• Advanced patented non-directional sensing technology.
• Superior sensitivity and functionality providing for accurate tracing and locating.
• Ergonomic receiver with information-rich full-color graphical LCD.
• Graphics and audible signal provide quick and easy to understand tracing feedback.
• Traces concealed wiring, locates junction boxes, and finds breakers for live or open circuits.
• Locates and identifies blown fuses.
• Finds shorts and breaks in conductors.
• Low pitch, high volume audible indicator.
• User-selectable automatic or manual gain capability for fast, convenient use.
• Power saving features promote extended battery life (Auto Power Off).
• Can be used on GFCI protected circuits.
• Supports transmitter-to-receiver distances up to 4 miles for closed circuit tracing.
• Does not affect sensitive electronic equipment on the circuit.
• Auto backlight on receiver maximizes battery life.
• Lifetime Limited Warranty.
Name:

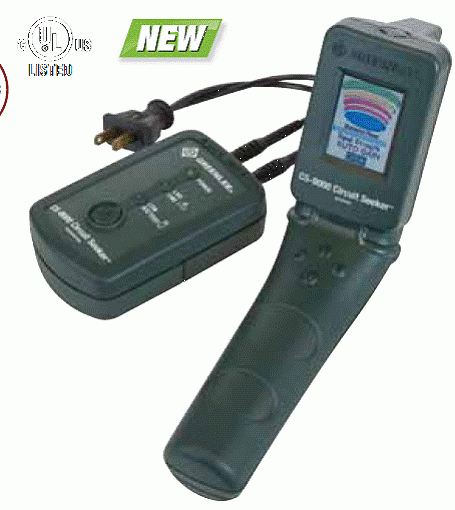

Circuit Seeker Circuit Tracer
Cat #:
UPC #:
12126
Spec:
- Operating Conditions:
Temperature: 0 to +50 ºC (32 to 122 ºF)
Altitude: 2000 m (6500’) maximum
Pollution Degree: 2
Indoor use only - Transmitter
Measurement Category: Category III, 750V
Operating Voltage: 0-750 V AC/DC
Live line LED indicates voltage above 12 VAC or 5 VDC
Frequency: 15.15 kHz
Low battery indicator
Batteries: Two AA batteries (NEDA 15A or IEC LR6) - Receiver
Range from Receiver to item with Signal:
Live Line Mode – up to 20 ft (6 m) from circuit
Open Line Mode – Up to 10 ft. (3 m) with a metallic connection to ground.
1 to 3 ft. (.3 to .9 m) with a capacitive ground reference.
Description:
• Advanced patented non-directional sensing technology.
• Superior sensitivity and functionality providing for accurate tracing and locating.
• Ergonomic receiver with information-rich full-color graphical LCD.
• Graphics and audible signal provide quick and easy to understand tracing feedback.
• Traces concealed wiring, locates junction boxes, and finds breakers for live or open circuits.
• Locates and identifies blown fuses.
• Finds shorts and breaks in conductors.
• Low pitch, high volume audible indicator.
• User-selectable automatic or manual gain capability for fast, convenient use.
• Power saving features promote extended battery life (Auto Power Off).
• Can be used on GFCI protected circuits.
• Supports transmitter-to-receiver distances up to 4 miles for closed circuit tracing.
• Does not affect sensitive electronic equipment on the circuit.
• Auto backlight on receiver maximizes battery life.
• Lifetime Limited Warranty.
